Herbold Meckesheim presents its product range at the IFAT

The hot washing system for polyolefins is one of the product innovations presented by Herbold Meckesheim at IFAT Munich. Hot washing results in qualities of recyclates that are suitable for use in the food sector. IFAT trade fair visitors can become familiar with the machine builder's modular systems during the trade fair.

Washing systems for plastics are in focus at Herbold Meckesheim’s booth at IFAT Munich
© Herbold Meckesheim

Washing systems for plastics are in focus at Herbold Meckesheim’s booth at IFAT Munich
© Herbold Meckesheim

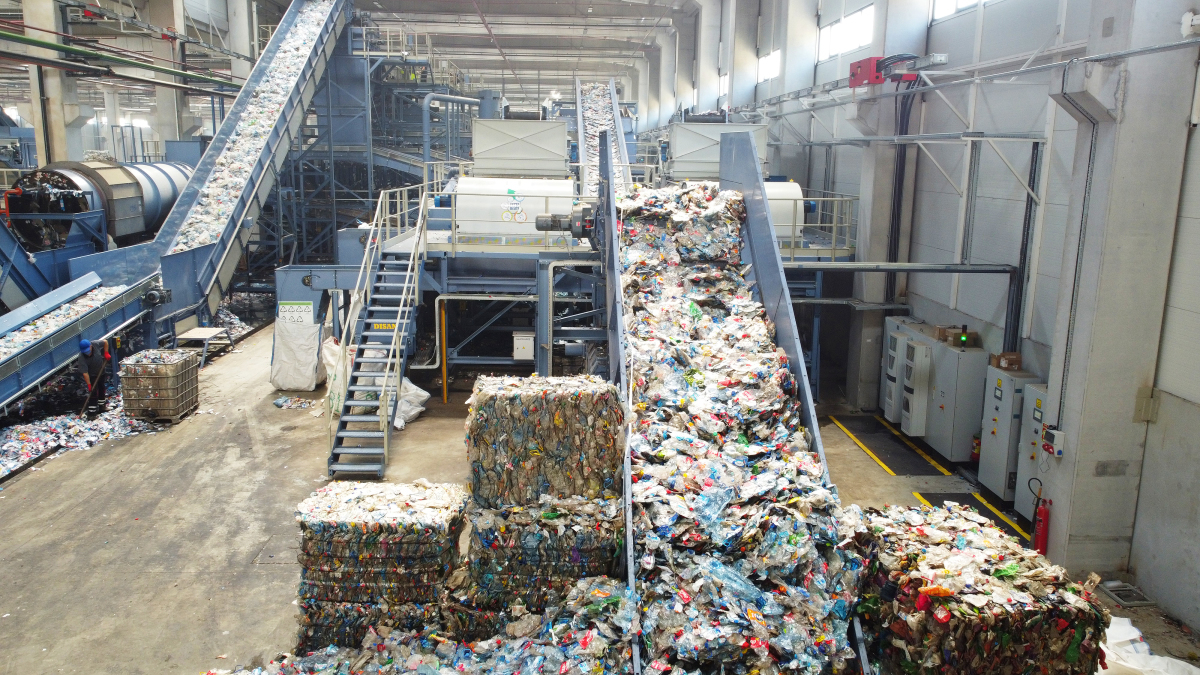

With its system solutions for automated plants, Herbold Meckesheim can respond quickly and flexibly to customer requirements. The recycling lines are built around the hydrocyclone stage with its high density separation – due to the strong centrifugal forces in the hydrocyclone, a separation effect is achieved that exceeds conventional processes by a factor of 15.

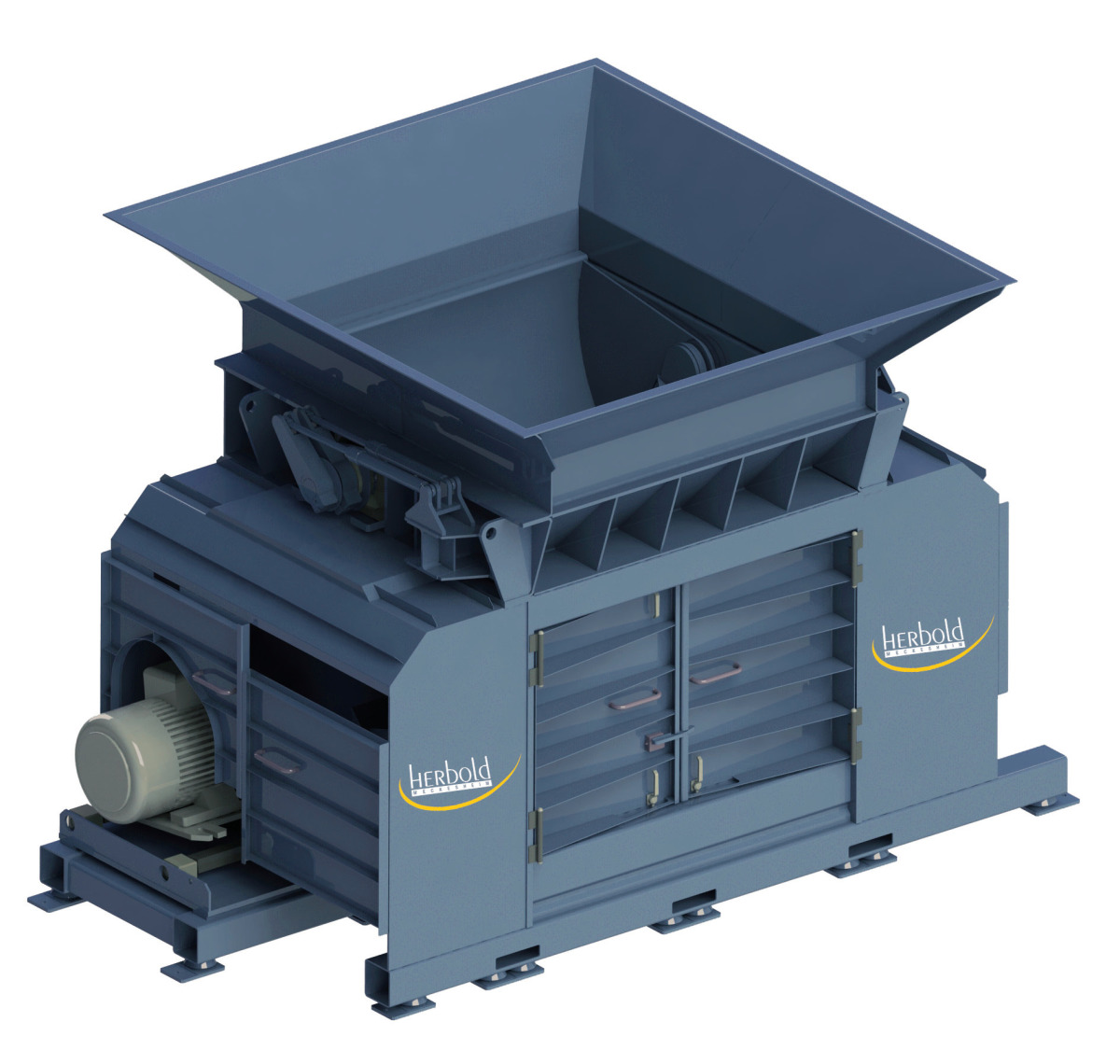

The first process stage of a recycling plant for washing, separating and drying is often a shredder such as the Herbold single-shaft shredder 60/210, which is suitable for both dry and wet operation. The treatment of post-consumer material demands shredders that can handle entire bales with a high degree of contamination and various disturbing impurities. At the same time, the machines should be wear-resistant and simple to operate and maintain.

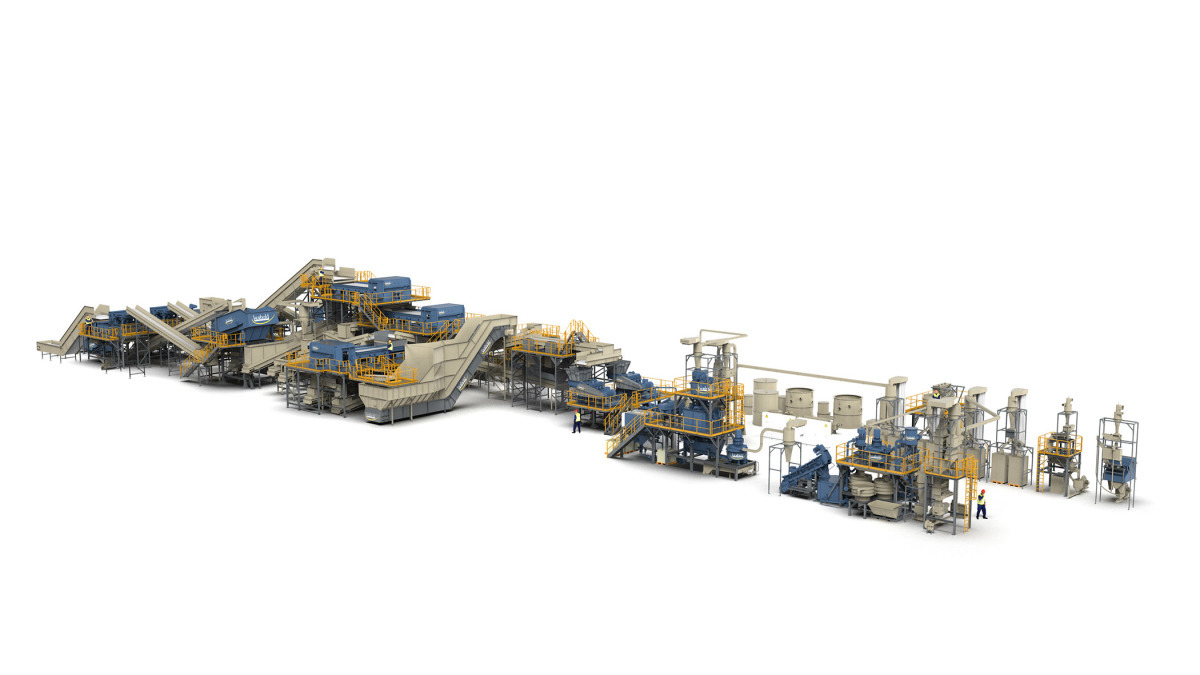

Thanks to its modular plant and process stage concepts, Herbold Meckesheim is able to flexibly implement customer requirements
© Herbold Meckesheim

Thanks to its modular plant and process stage concepts, Herbold Meckesheim is able to flexibly implement customer requirements
© Herbold Meckesheim
The shredder is usually followed by the multi-stage pre-washing unit VWE, which captures coarse impurities and reduces mineral fraction. Friction washers such as the FA 3000 are used to dewater and clean the ground material, for example from films or rigid plastics. Odors and adhesives can be removed by a Herbold hot washing with adjustable temperatures and dwell time and with the addition of suitable detergents. Machine solutions such as the T 2016 are used for mechanical drying. A two-stage thermal dryer completes the process in such a way that only low residual moisture remains. For materials with poor flow properties, a silo of the HRS type is appropriate.

Visitors to IFAT can find out how machine solutions are further developed and tested at Herbold's own technical lab in Meckesheim. These include series such as the SB granulators with forced feeding or plastic compactors such as the HV 70. In its modular plant and process stage concepts, the machine builder relies on a high degree of automation that can cope with heterogeneous feed materials, thus avoiding downtimes and helping to keep personnel costs low.

Herbold Meckesheim is also participating in the VDMA Plastics Recycling Theme World at IFAT Munich, which illustrates circular economy and plastics recycling at the booth of the Association of German Machine Builders.

Hall B5, Booth 153

www.herbold.com

Related articles:

Issue 06/2022 PET washing systems in demand

Modular design of automated plants and recycling lines

In addition to individual machine solutions, shredding technology and plastcompactors, dryers and, above all, complete plastic washing lines are the main areas of interest. In the case of the latter,...

more
Issue 05/2019

Efficiency and quality in plastic recycling thanks to the innovative process

The machine and plant manufacturer from Meckes-heim/Germany will be presenting tried and tested process solutions for the treatment of plastic waste in Düsseldorf in addition to its wide range of...

more

Focus on the circular economy brings Herbold Meckesheim many orders at K 2022

Herbold Meckesheim is thoroughly satisfied with the results of K 2022. The fact that the leading trade fair for the plastics and rubber industry focused on the circular economy naturally played into...

more
Issue 02/2018

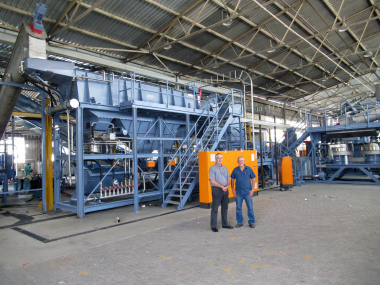

HERBOLD MECKESHEIM GmbH: Post-consumer-PE-film-recycling in South Africa

The first large-scale plant for the recycling of heavily contaminated PE film waste has now started running in Germiston South, near Johannesburg. Delivered by HERBOLD MECKESHEIM, the plant can...

more
Issue 04/2024 PET bottle recycling solution from a single source

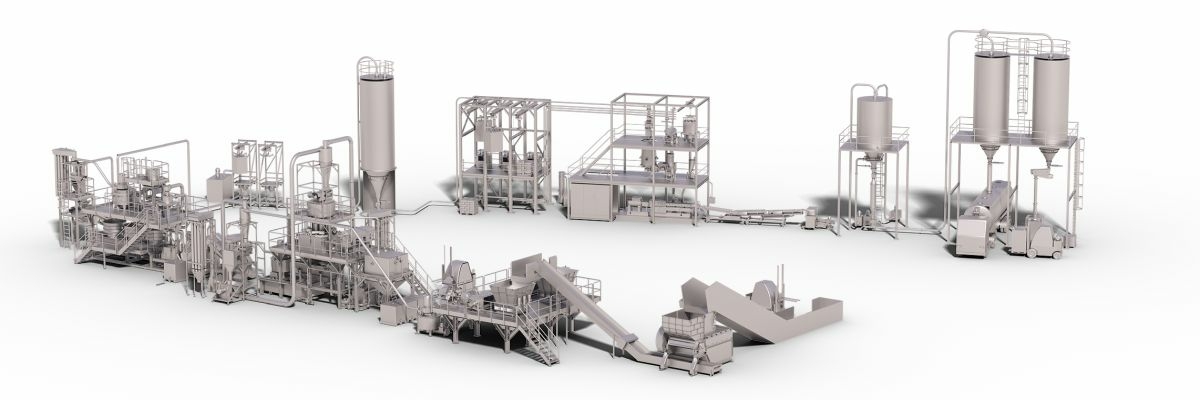

Coperion and Herbold Meckesheim deliver bottle-to-bottle recycling plant to Magpet
