Track mobile solution

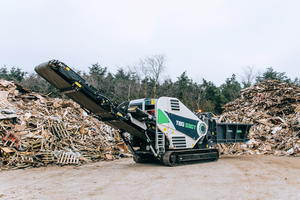

Terex Ecotec’s new TBG 530T high speed shredder

Terex Ecotec continue to expand their range of mobile equipment with the launch of the TBG 530T. A robust track mounted high-speed shredder, the TBG 530T is ideal for medium scale producers requiring an accurate and consistent end product.

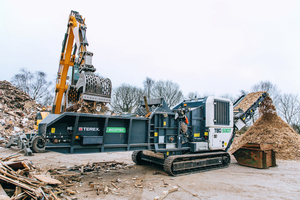

Powered by a 493 HP Scania DC13 engine, the TBG 530T has been designed to give operators high performance, ease of maintenance and superb fuel efficiency. Extremely versatile, it excels in many applications and is particularly suited to waste wood processing and green waste shredding.

Speaking about the latest innovation, Tony Devlin, Business Lines Director for Terex Ecotec said: “The TBG 530T allows our product range to further meet operators’ needs. Inspired by the successful TBG 630, the TBG 530T has been purposefully engineered to maintain the same key features in a smaller package.” With a rapid set up time the TBG 530T is ready to work in a matter of minutes with no tooling required. The open fronted feeder enables the TBG 530T to be fed quickly and easily from the rear. The intelligently controlled feed system, comprising of heavy duty drag chains and aggressive feed wheel with lift/downward assist, ensures optimum material flow resulting in efficient performance.

At the heart of the machine is the 1100 mm Ø x 1490 mm wide swinging ­hammer rotor. This robust, direct drive rotor rotates at 1000 RPM and incorporates 30 up-swinging hammers. A wide selection of hammer designs and interchangeable screens are available allowing the machine to be configured to suit the ever-changing product requirements. The TBG 530T also benefits from the added protection of a screen kickback system. Should an unshreddable object enter the shredding chamber the screen will release allowing the material to quickly pass through, reducing the risk of accidental damage.

Processed material is removed from the machine via a modular product conveyor with a discharge height of 4.6 m. This conveyor also lowers to ground level for inspection and maintenance. An optional overband magnet with hydraulic height adjustment can be fitted to remove ferrous metal from the product.

Whether performing daily checks or carrying out maintenance, the TBG 530T offers unrivalled service access to all key areas of the machine. The electric/hydraulic raise/lower of the screen and interlocked chamber access door allow the rotor and anvil to be inspected with ease. Designed with the operator in mind, the TBG 530T offers the perfect blend of performance, efficiency and serviceability. Furthermore, the TBG 530T comes fitted as standard with the T-Link telematics solution designed to improve productivity, efficiency and profitability for the customer.

www.terex.com/ecotec

www.terex.com/ecotec
